Manufacturer Manual (Please refer for Warranty and other conditions)
OPERATION CLASS
D
NUMBER OF CHANNELS
1
INPUT SENSITIVITY
220 mV
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 18KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
90Hz ~ 18KHz (-12dB/8ª) Variable
INPUT IMPEDANCE
15K Ohms
OUTPUT IMPEDANCE
4 OHM
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.0 A
MAXIMUM MUSIC CONSUMPTION
150 A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
300 A

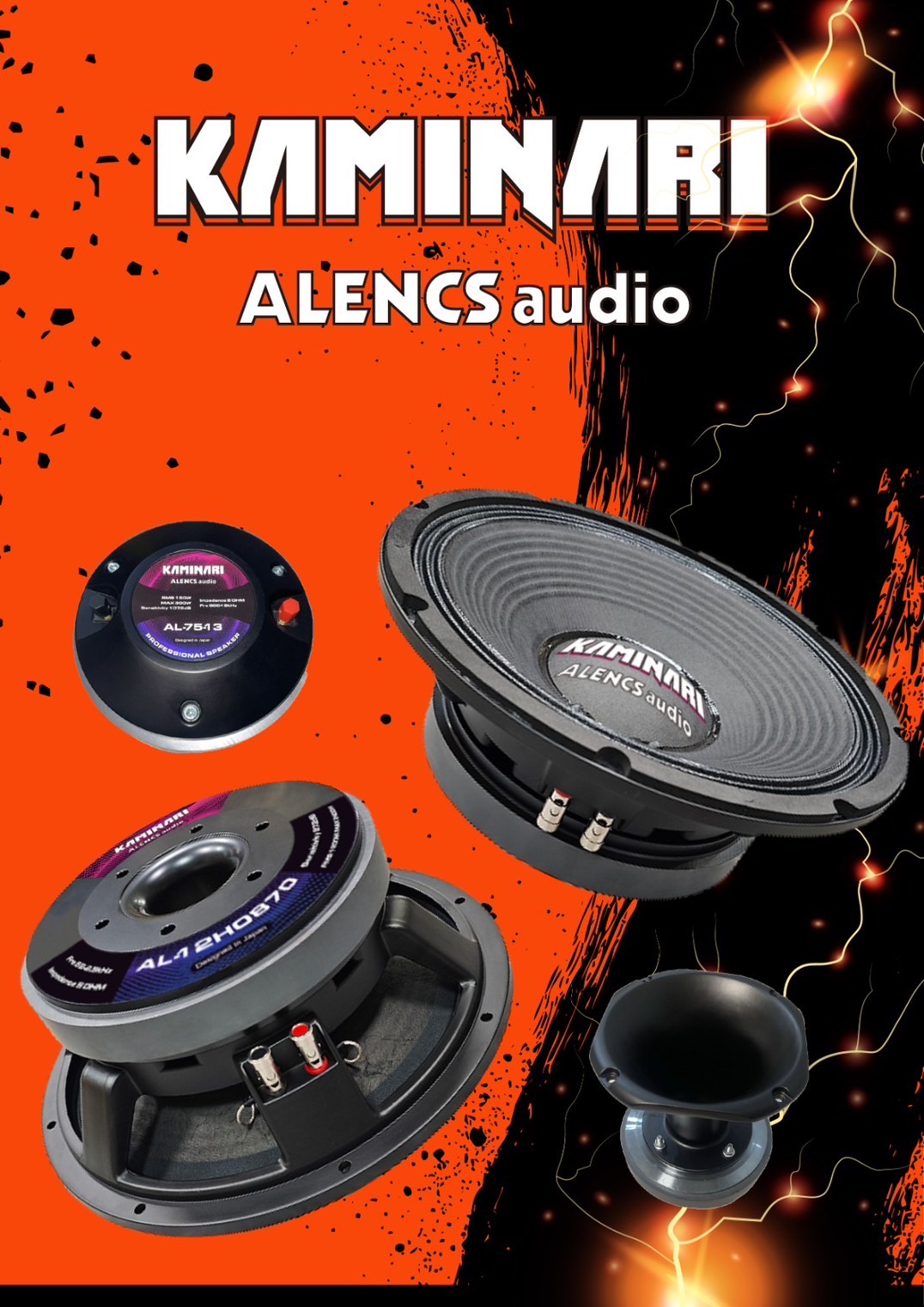

Kaminari 12 inch Speaker Specification
- Model No: AL-12H0807
- 12inch (30cm)
- Nominal power handling (RMS)：1,200W
- Maximum power handling (MAX)：2,400W
- Sensitivity：97.2 dB
- Resonance Frequency: 67Hz
- Impedance: 8 ohms
- Frequency Range：52Hz～2800Hz
- Weight: 10.5 kg
- Box Size: 34 x 34 x 30 cm / box 2 unit
