Manufacturer Manual (Please refer for Warranty and other conditions)
OPERATION CLASS
D
NUMBER OF CHANNELS
1
INPUT SENSITIVITY
0.22V ~ 4V
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
90Hz ~ 10KHz (-12dB/8ª) Variable
INPUT IMPEDANCE
10K Ohms
OUTPUT IMPEDANCE
1 OHM
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
MINIMUM SUPPLY VOLTAGE
9.5VDC
MAXIMUM SUPPLY VOLTAGE
17VDC
CONSUMPTION AT REST
2.90A
MAXIMUM MUSIC CONSUMPTION
387A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
774A

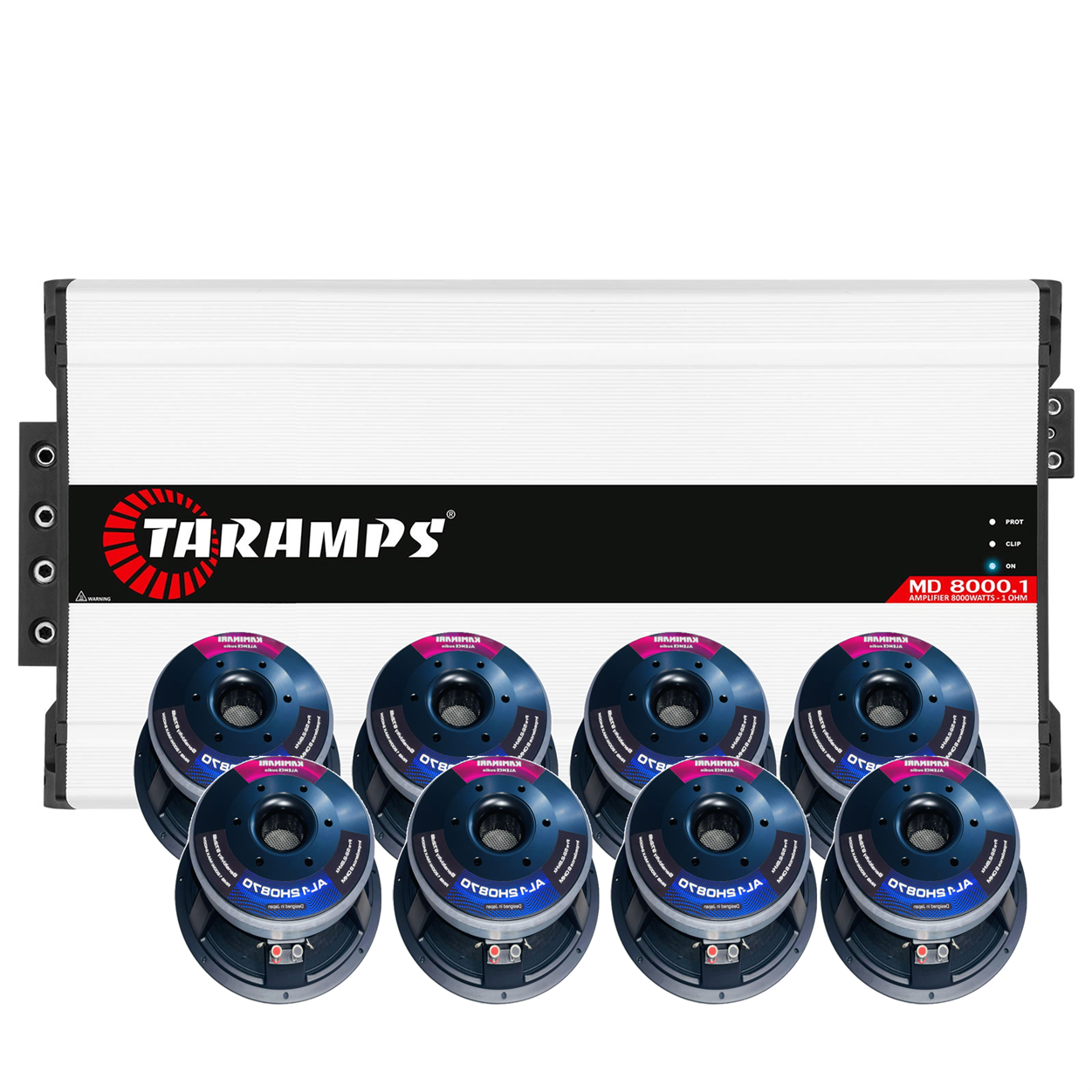

Kaminari 12 inch Speaker Specification
- Model No: AL-12H0807
- 12inch (30cm)
- Nominal power handling (RMS)：1,200W
- Maximum power handling (MAX)：2,400W
- Sensitivity：97.2 dB
- Resonance Frequency: 67Hz
- Impedance: 8 ohms
- Frequency Range：52Hz～2800Hz
- Weight: 10.5 kg
- Box Size: 34 x 34 x 30 cm / box 2 unit
